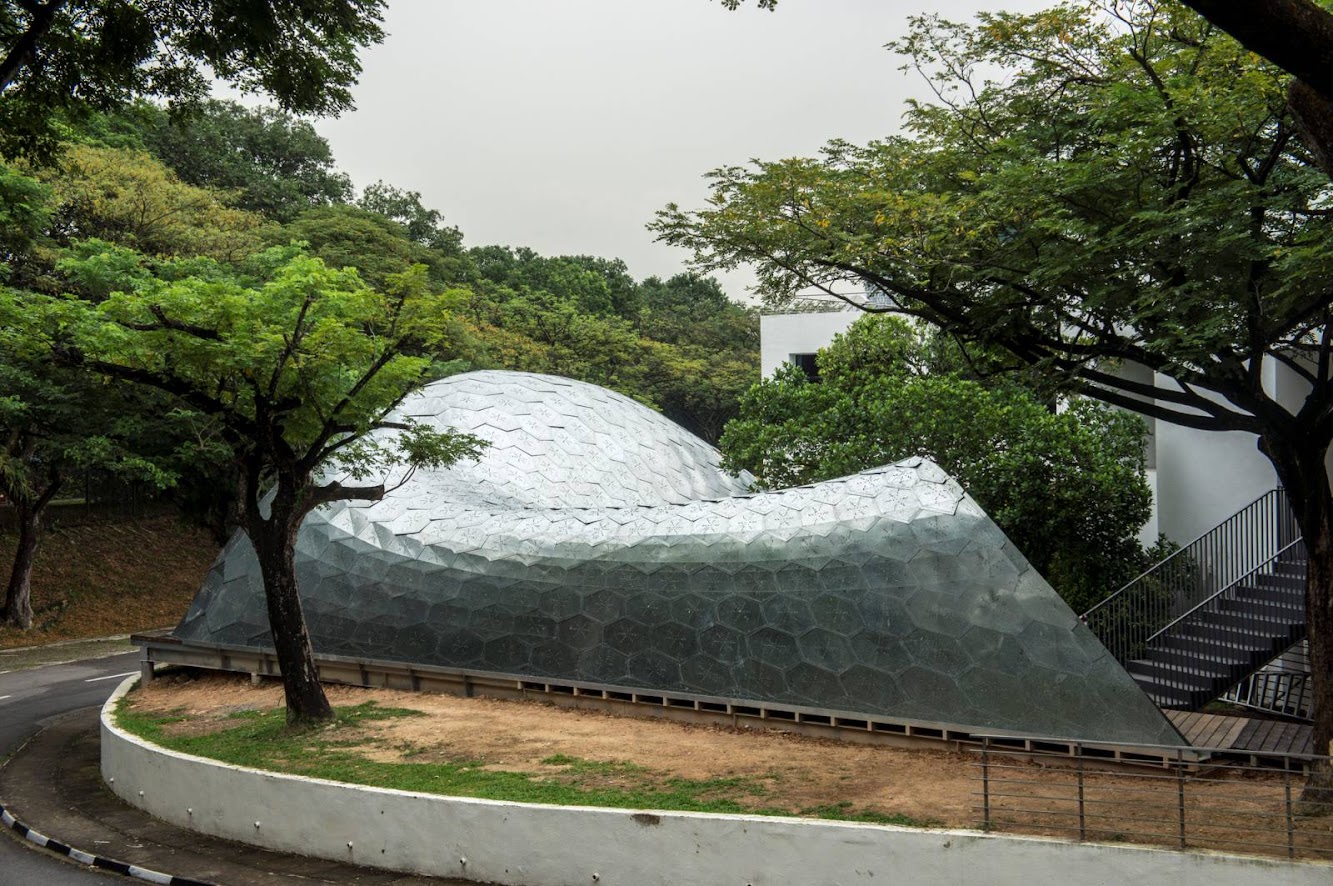

The Singapore University of Technology and Design (SUTD) library pavilion is located on a sloping lawn on the temporary Dover Campus.

Sutd Library Gridshell Pavilion by City Form Lab

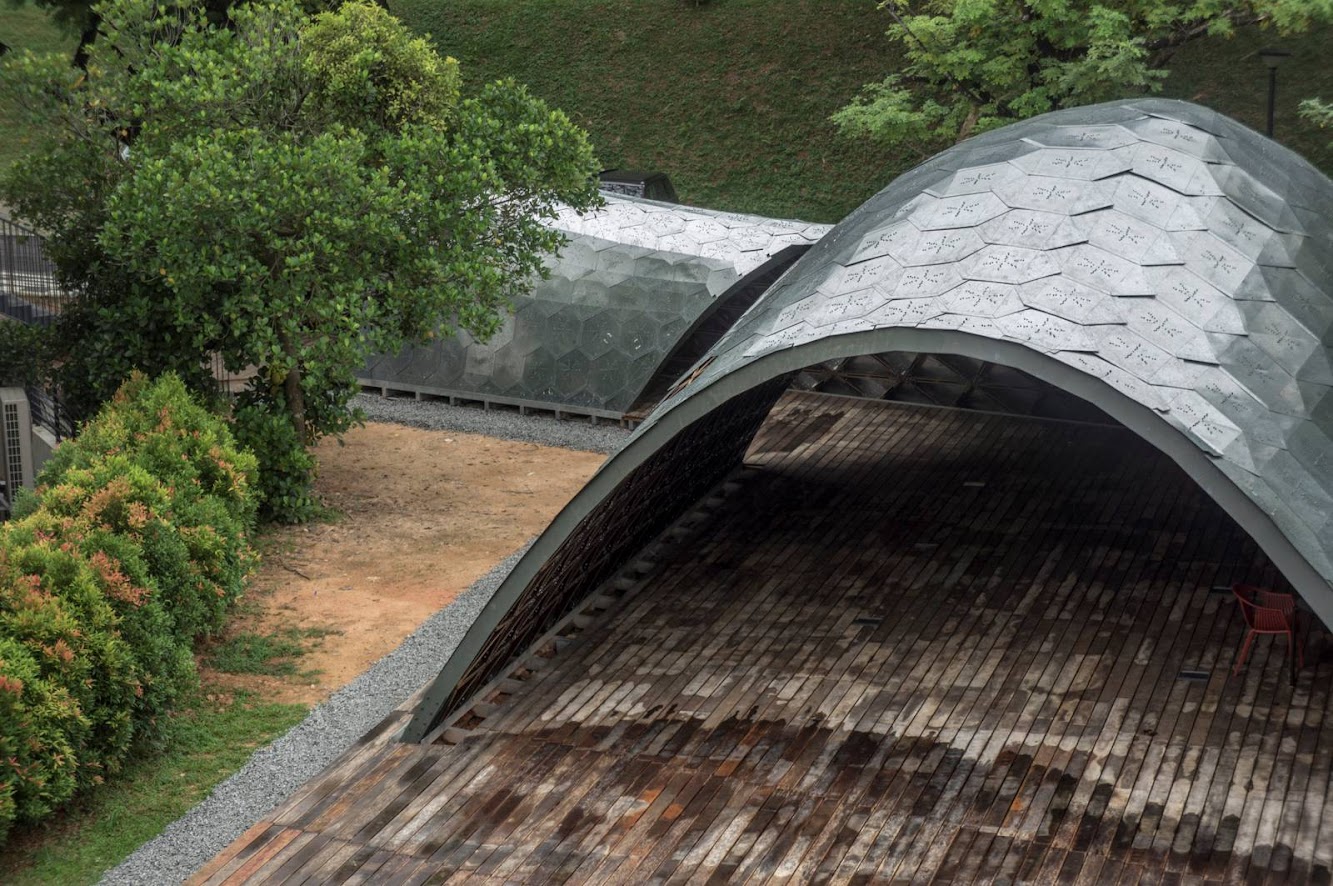

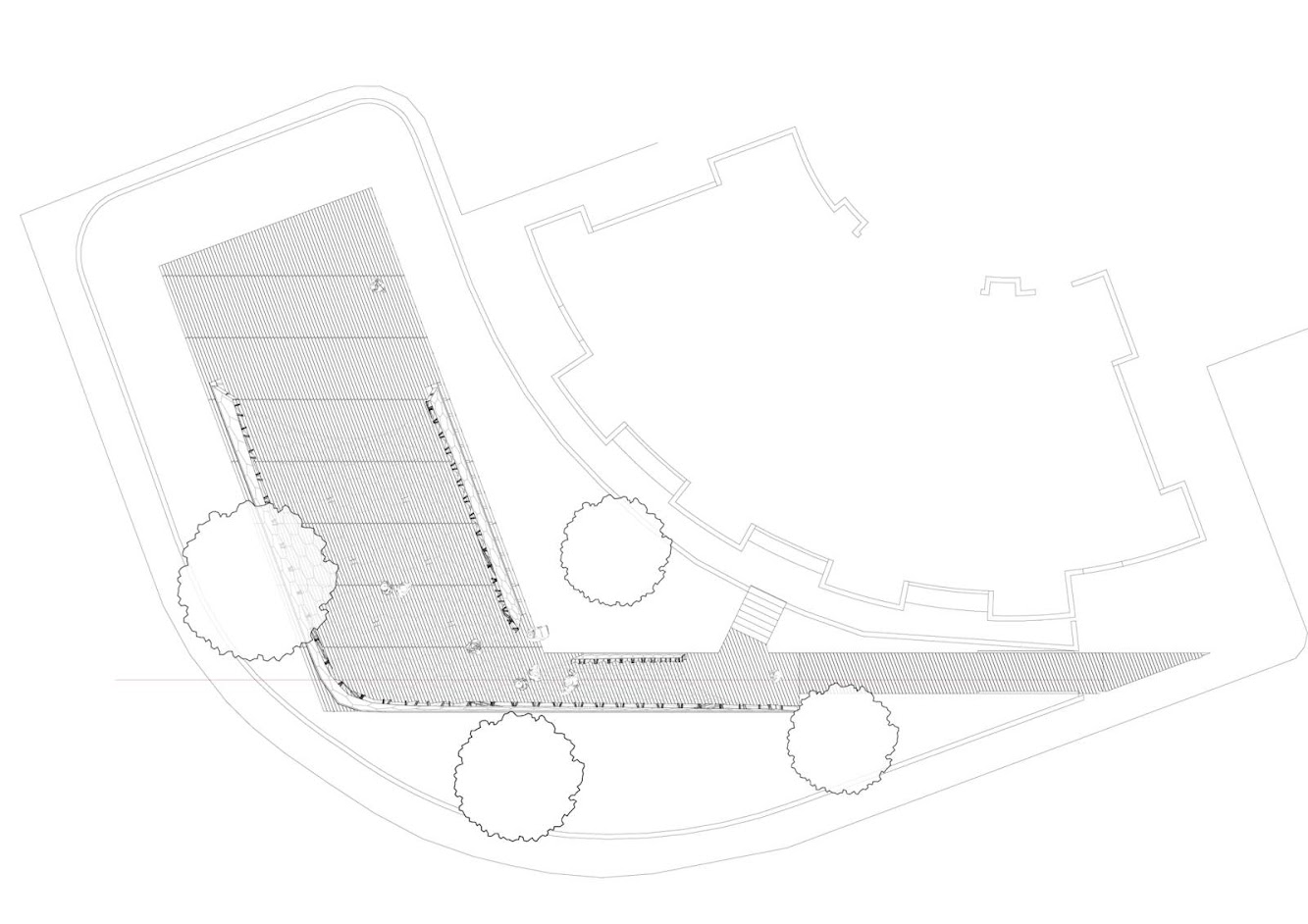

Accommodating three mature trees and forming a noise barrier toward the Ayer Raja Expressway in the north, the gridshell structure of the pavilion harnesses the site constraints and activates an outdoor space behind the existing library building.

Sutd Library Gridshell Pavilion by City Form Lab

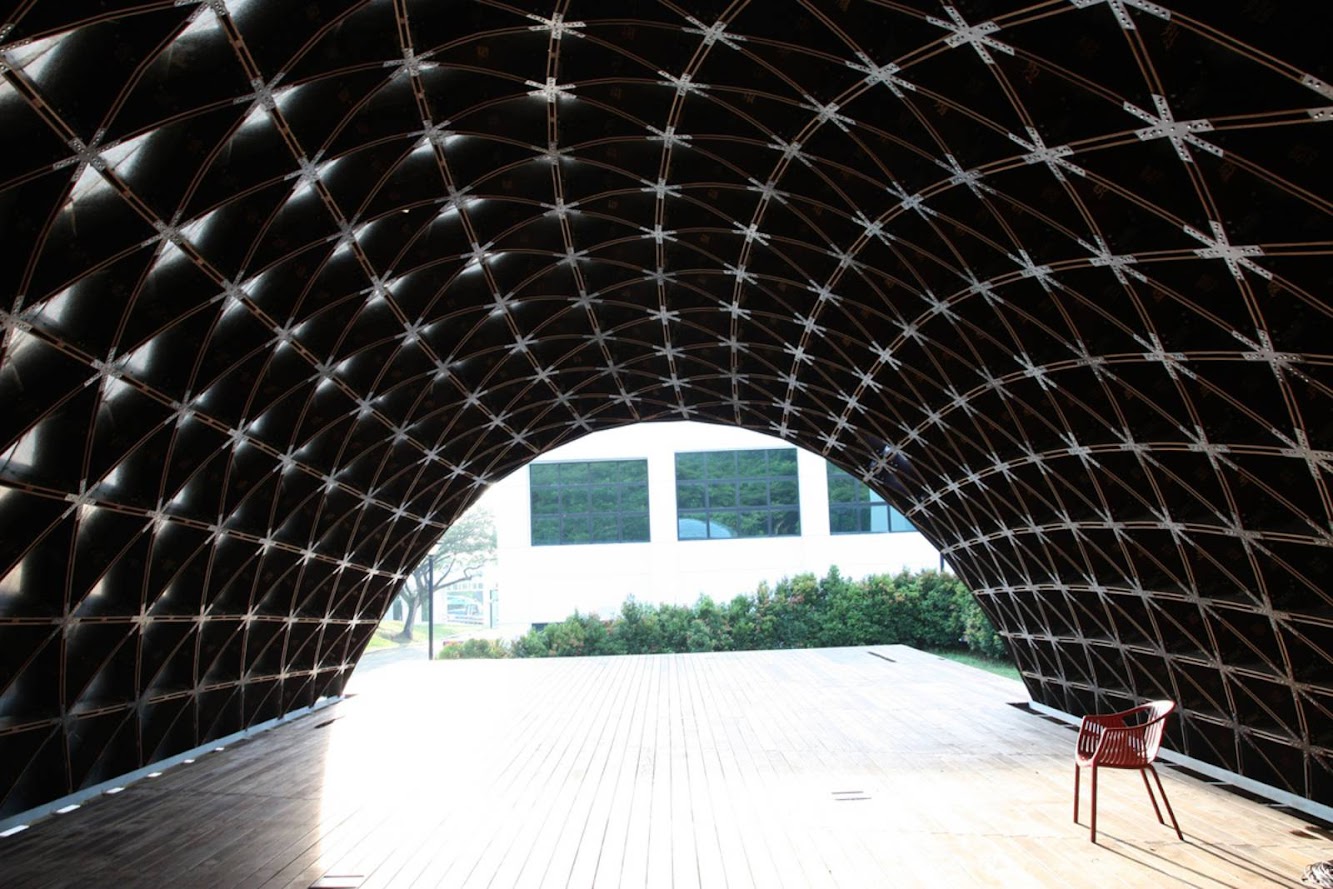

During the day, it offers a shaded open-air place to relax, work, and mingle for students and staff of the university. At night it becomes a place for informal gatherings, evening lectures and Sutd community events.

Sutd Library Gridshell Pavilion by City Form Lab

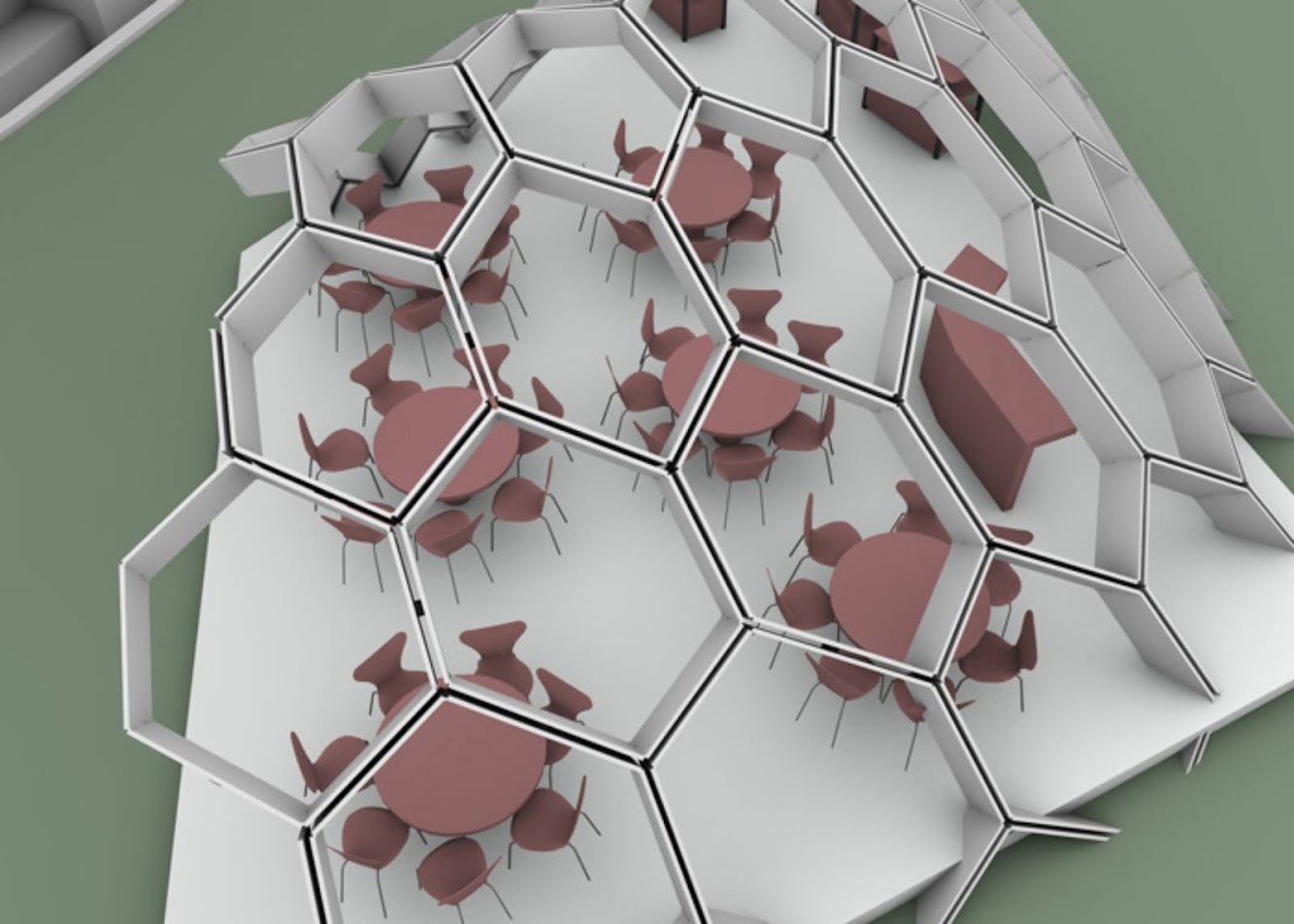

Work desks, mobile bookshelves and wireless internet transform it into a “third space” between the dormitory and the classroom where intellectual and social exchange occurs in a casual atmosphere.

Sutd Library Gridshell Pavilion by City Form Lab

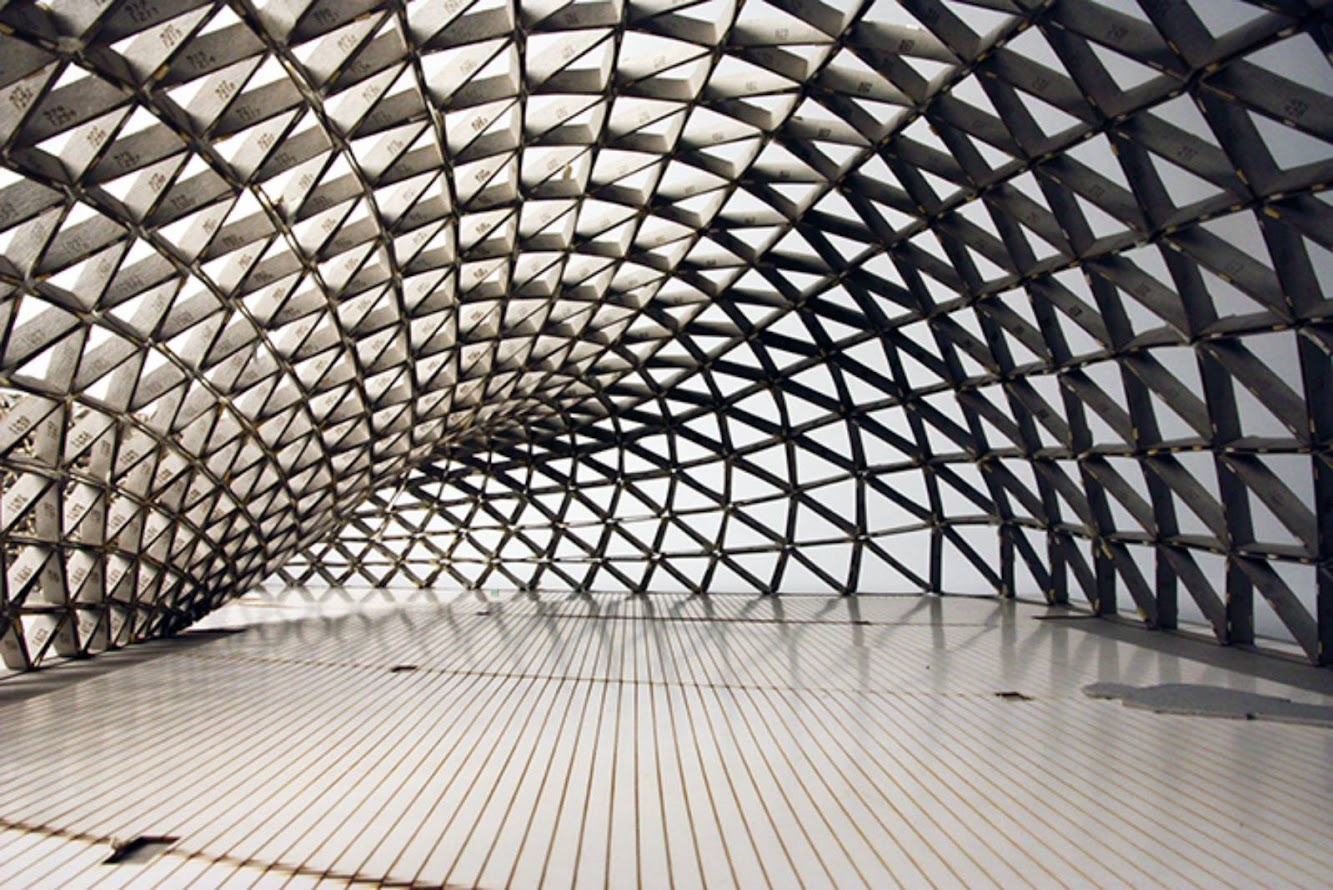

Design & Construction Process:Building upon a long tradition of catenary structures that use little material to achieve considerable spans, the canopy forms a lightweight timber shell with no columns, beams, or vertical walls.

Sutd Library Gridshell Pavilion by City Form Lab

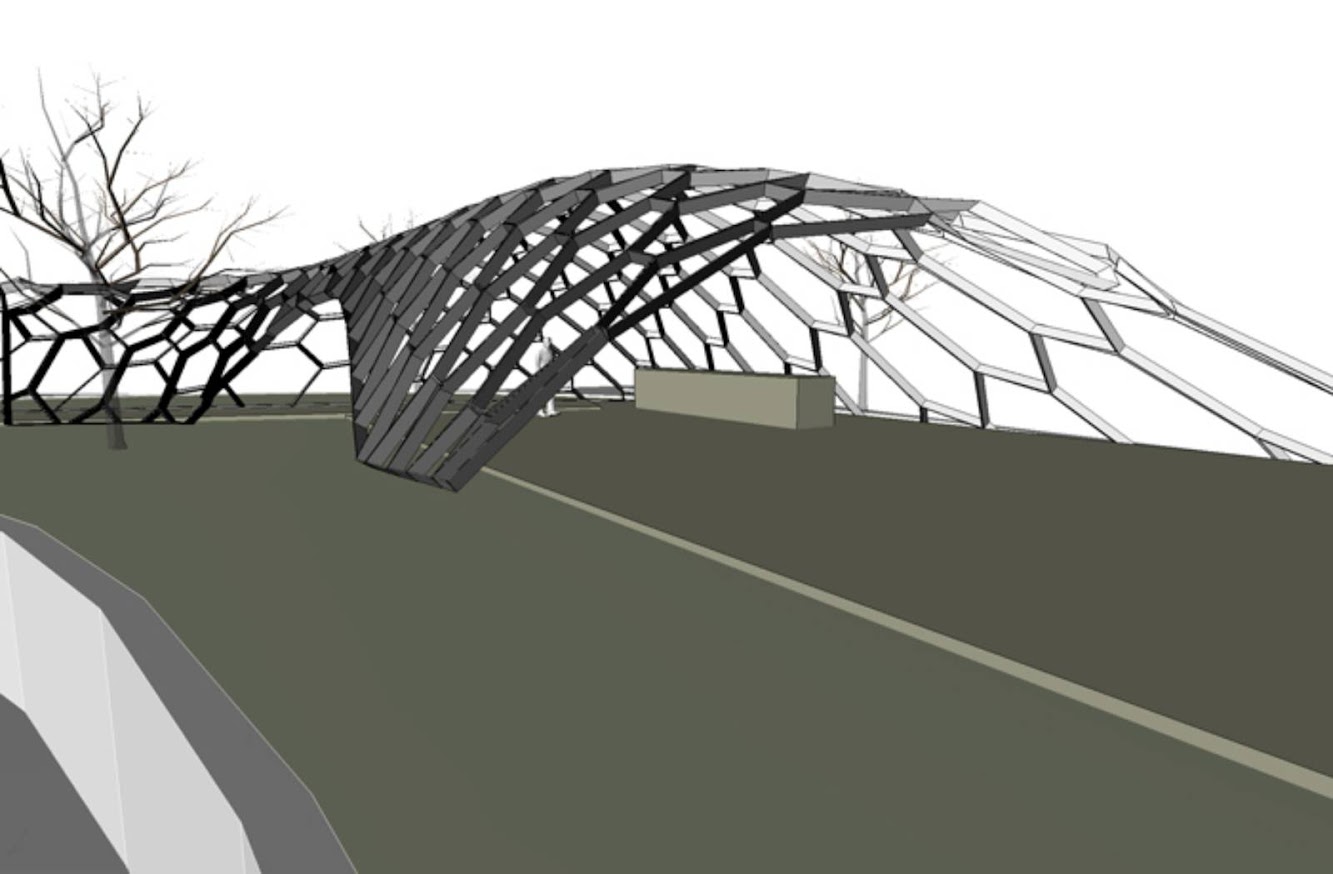

A numeric hanging-chain model was used to determine an efficient double-curvature shape that follows the lines of thrust in compression.

Sutd Library Gridshell Pavilion by City Form Lab

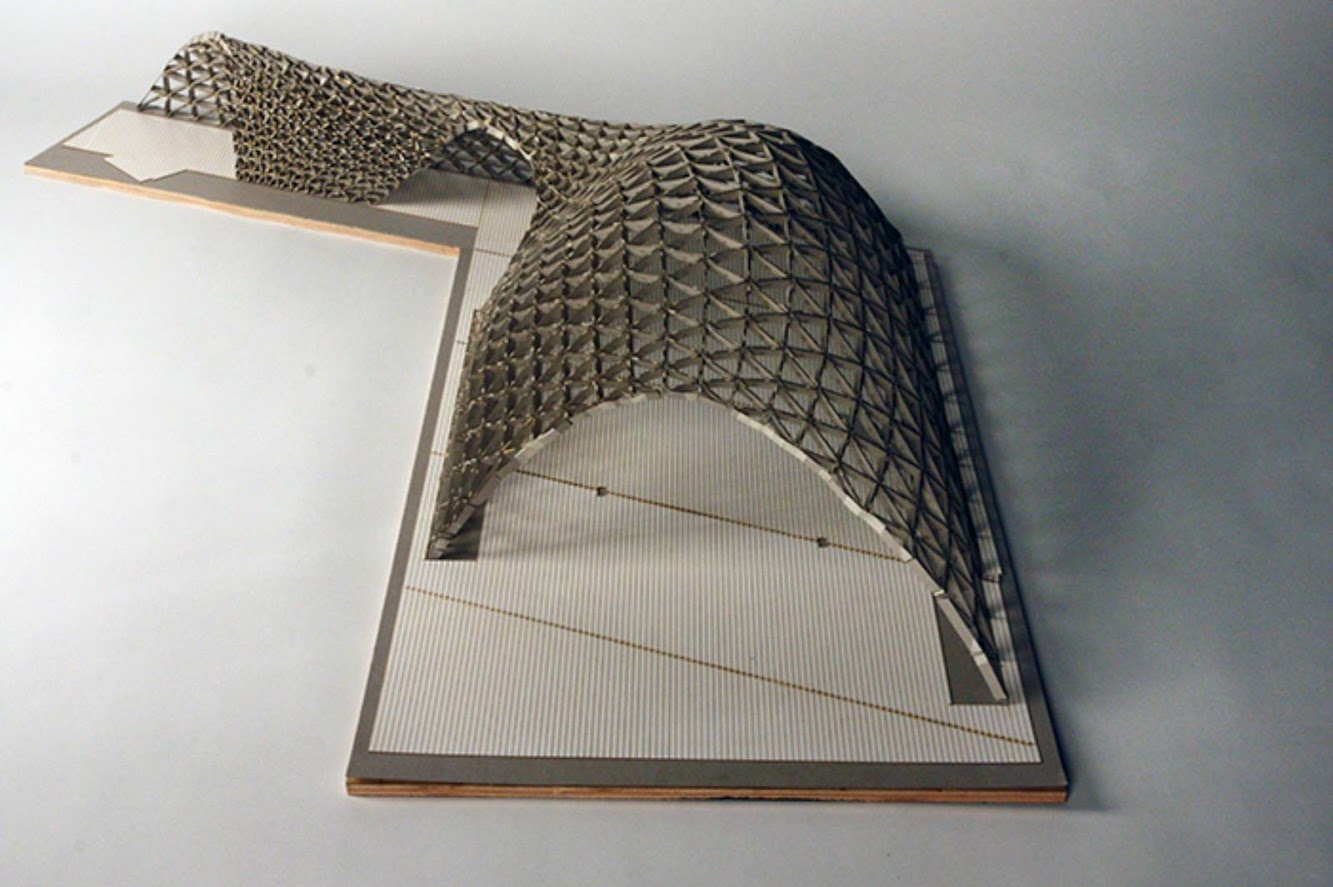

Using computational design and computer-controlled fabrication allowed the pavilion’s complex three-dimensional form to be achieved with readily available materials and a streamlined assembly process at minimal cost.

Sutd Library Gridshell Pavilion by City Form Lab

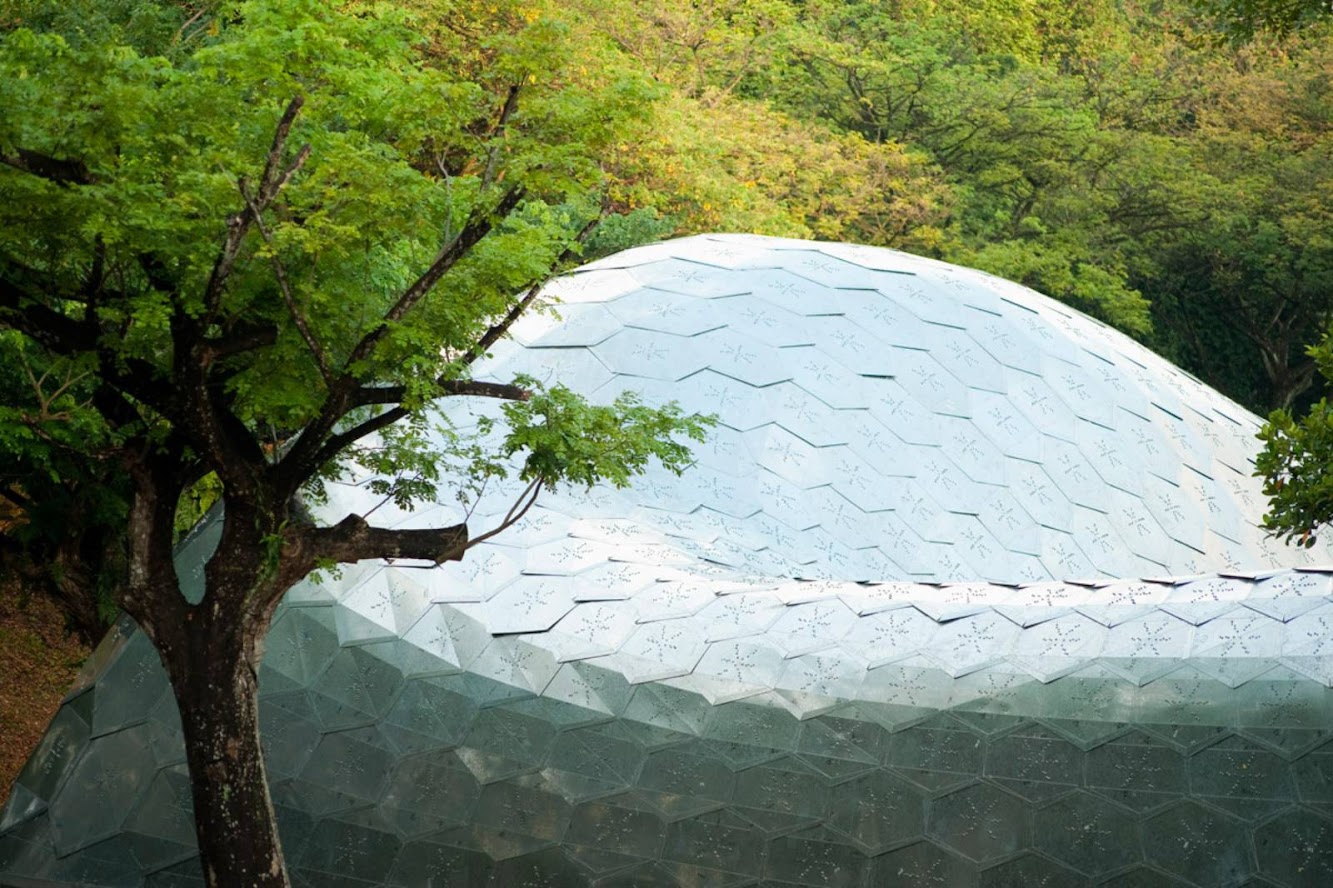

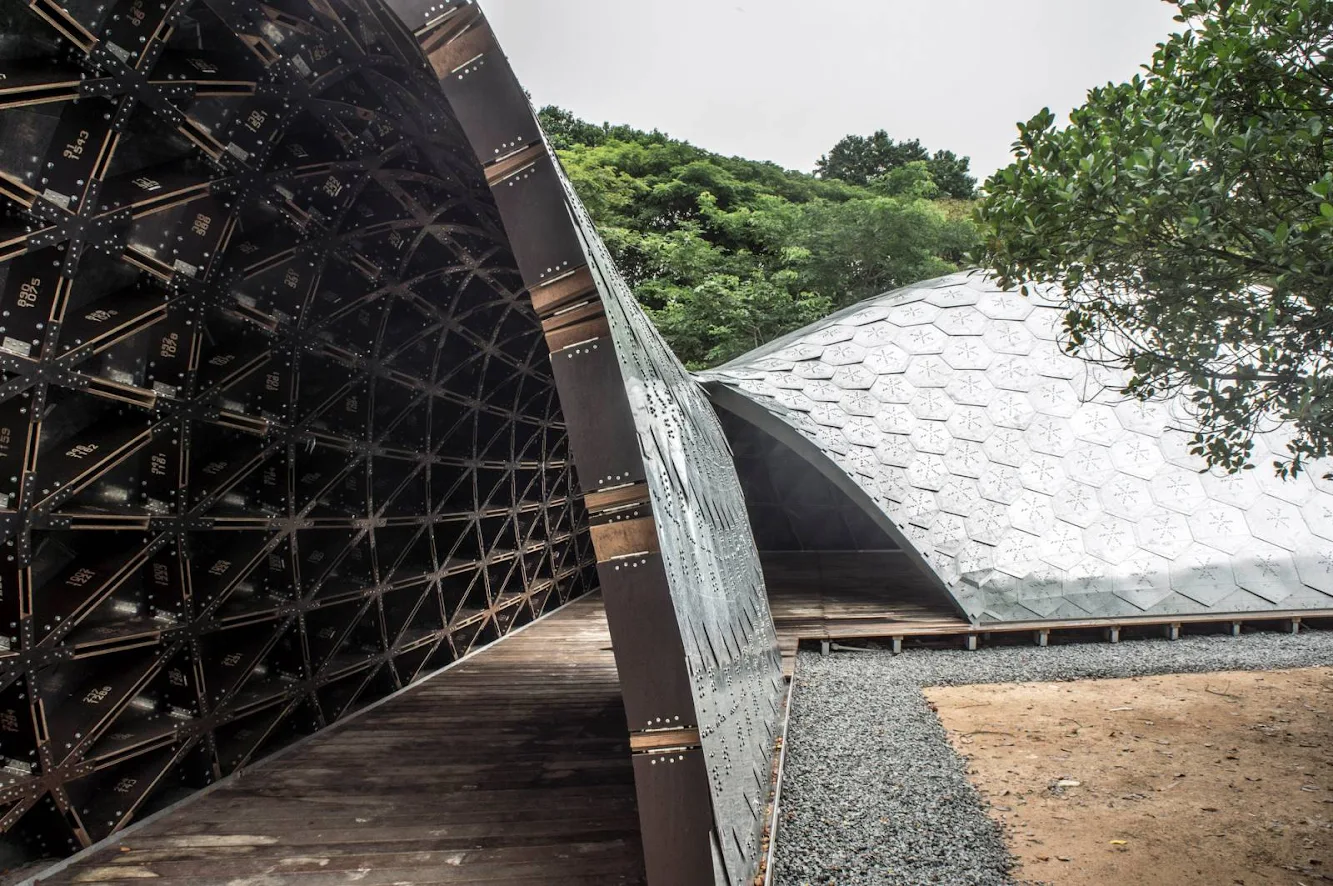

Unlike steel gridshells, it has no complex three-dimensional structural joints – all of its elements were prefabricated from strictly flat plywood and galvanized steel sheets on Cnc machines in Singapore.

Sutd Library Gridshell Pavilion by City Form Lab

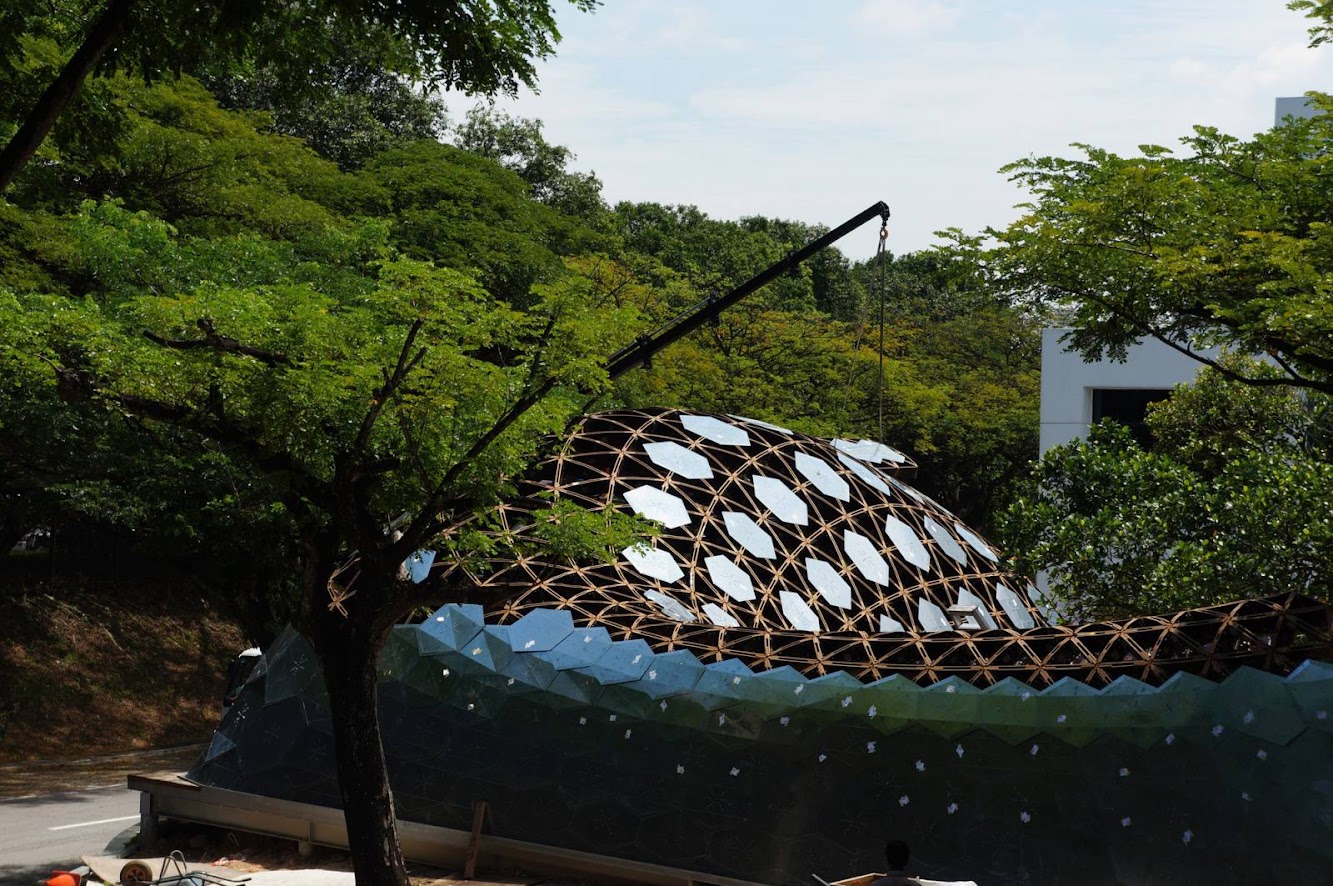

The site work thus comprised an orderly assembly of 3,000 unique plywood and 600 unique sheet-metal tiles based on only one drawing – the numeric map of a three-dimensional puzzle indicating which pieces fit next to which other pieces.

Sutd Library Gridshell Pavilion by City Form Lab

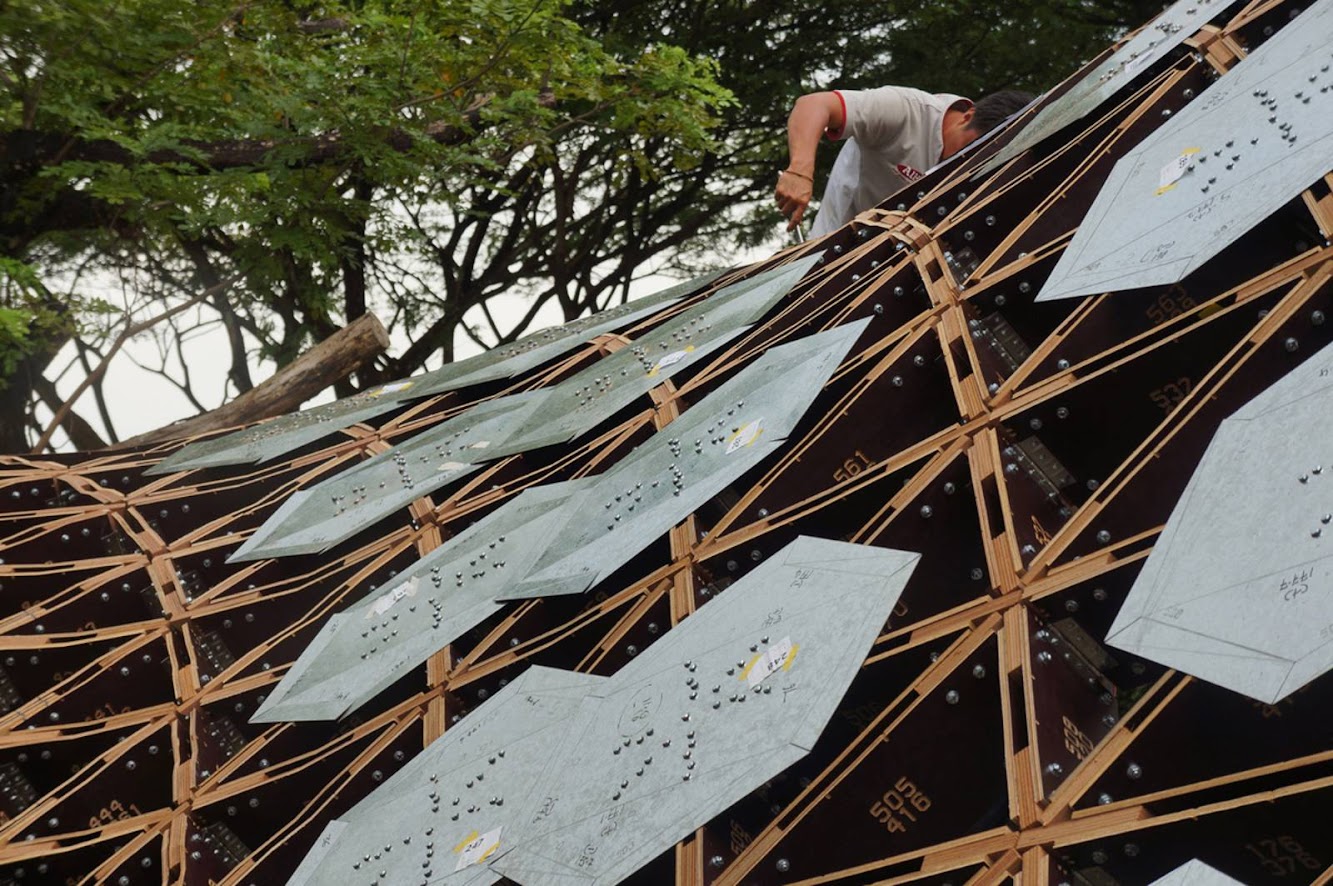

Id numbers were engraved in the cutting process on each plywood and cladding element, which remain visible in the finished structure as ornament. First year Sutd students assisted with the pre-assembly of the pieces and the contractor erected the structure on site. the pavilion is designed to be dismantled and recycled after two years.

Sutd Library Gridshell Pavilion by City Form Lab
Sutd Library Gridshell Pavilion by City Form Lab
Sutd Library Gridshell Pavilion by City Form Lab
Sutd Library Gridshell Pavilion by City Form Lab
Sutd Library Gridshell Pavilion by City Form Lab
Sutd Library Gridshell Pavilion by City Form Lab
Sutd Library Gridshell Pavilion by City Form Lab
Sutd Library Gridshell Pavilion by City Form Lab

Location: Dover Rd, Singapore Architects: City FormLab Project Team: Andres Sevtsuk, Raul KalvoEngineering: Arup (Russel Cole, Mike King, Benjamin Sitler)Construction: Arina International Hogan (AIH) and Sutd studentsSponsors: Arina International Hogan (AIH), Arup, AutodeskArea: 200m² / 2,153ft² (covered), 300m² / 3,229ft² (deck)Year: 2013 Photographs: Raul Kalvo, Courtesy of City Form Lab
