Kildare, Irlanda: ÁRas Chill Dara by Heneghan Peng Architects
Áras Chill Dara by Heneghan Peng architects

Áras Chill Dara is the administrative headquarters of Co. Kildare. This project is formed around the civic garden which slowly inclines from the street to the building entrance, its sloped surface making the deep garden visible from the street.

Áras Chill Dara by Heneghan Peng architects

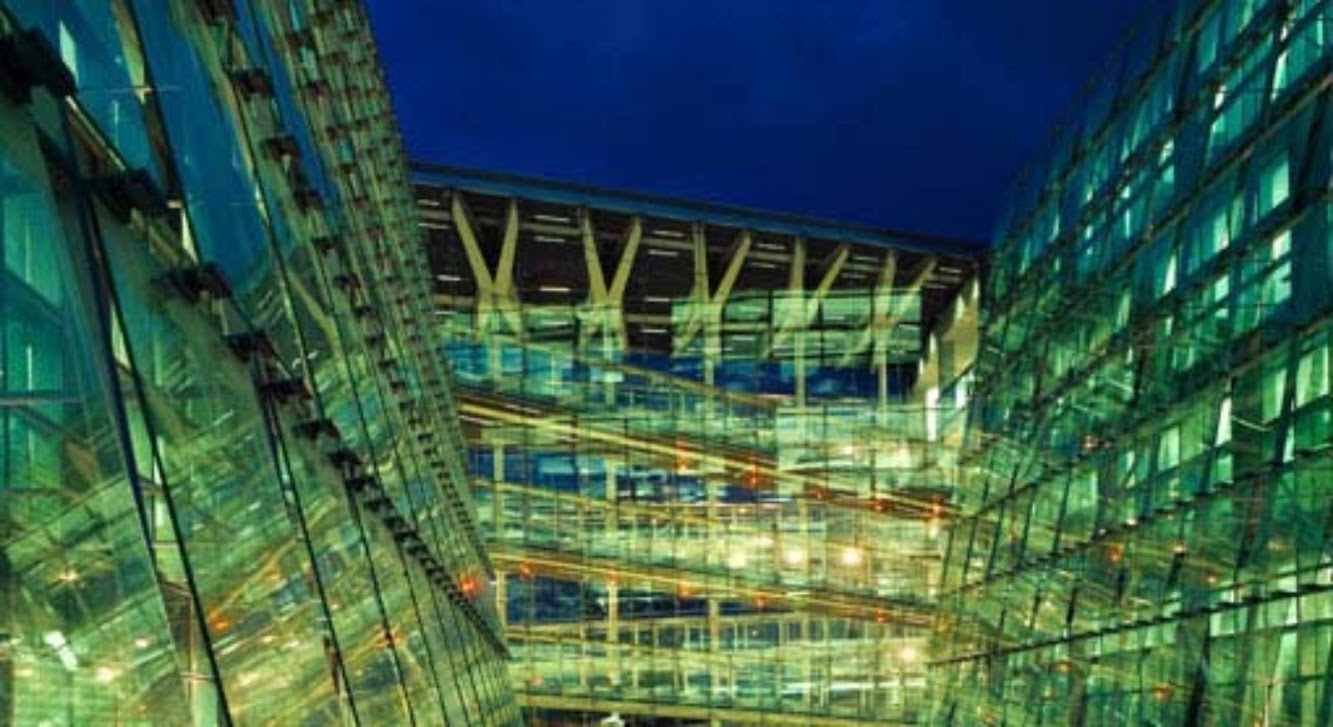

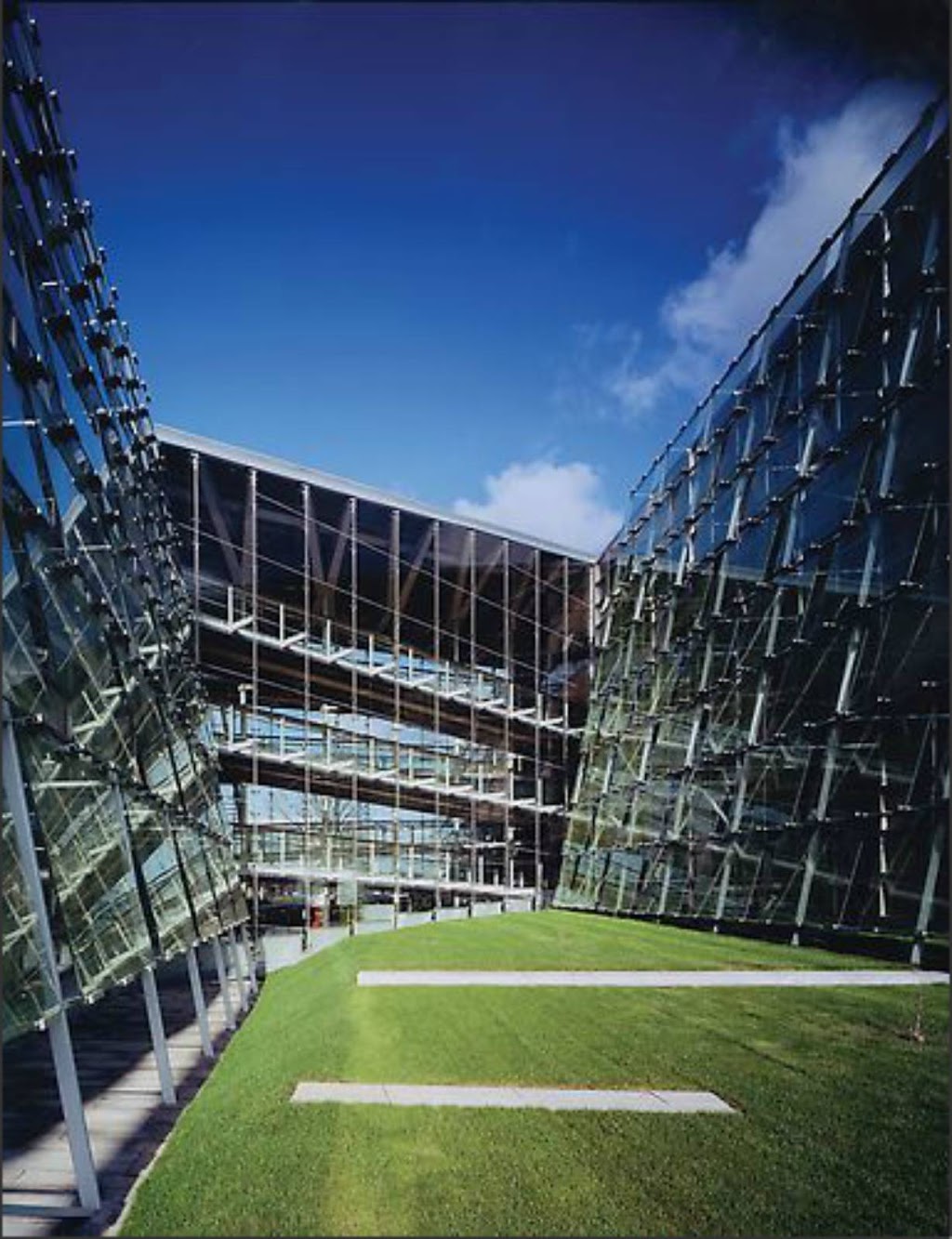

The two bars that form the civic offices enclose and are a continuation of the civic garden. Building and park no longer read as two distinct elements but rather combine to create an outdoor room.

Áras Chill Dara by Heneghan Peng architects

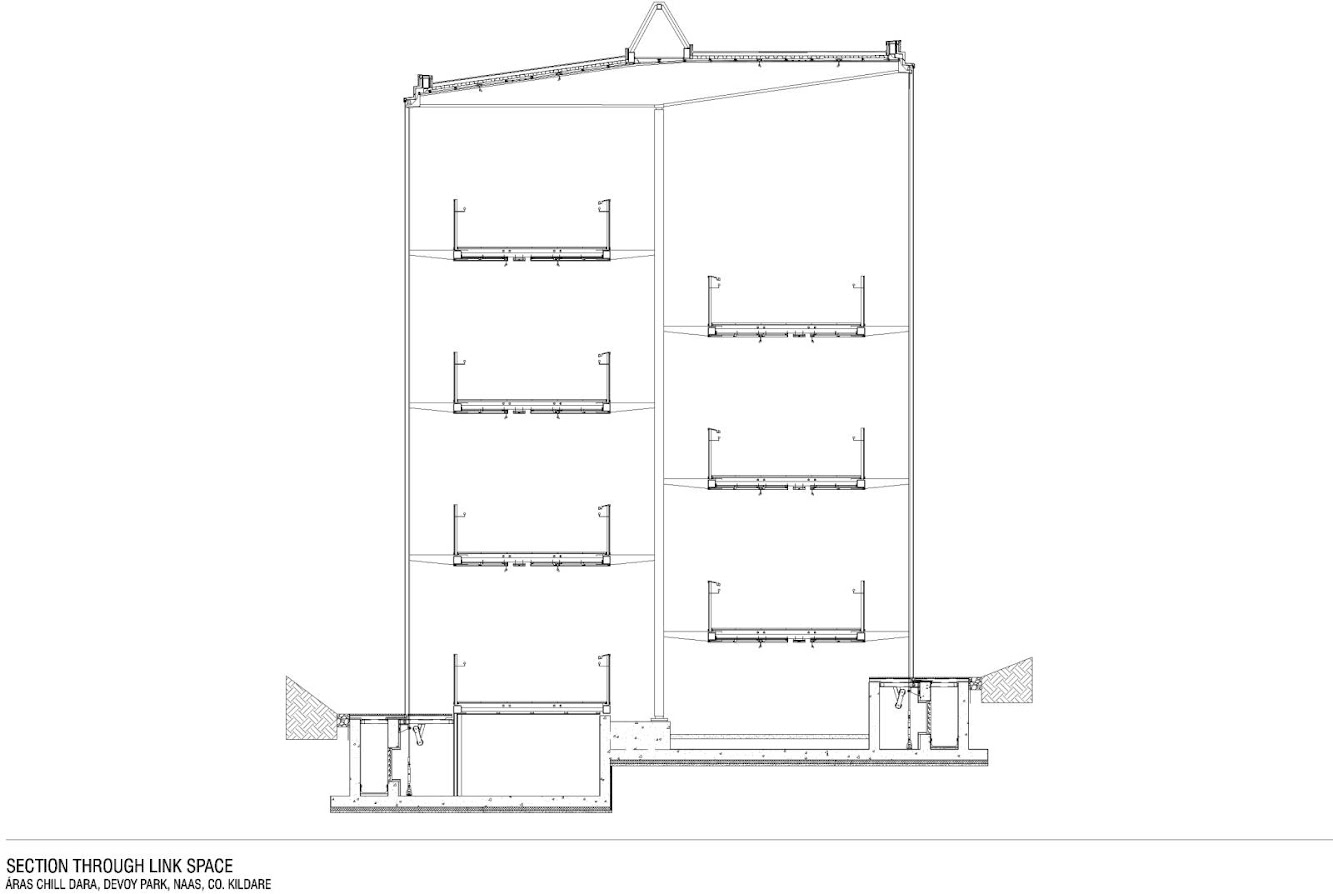

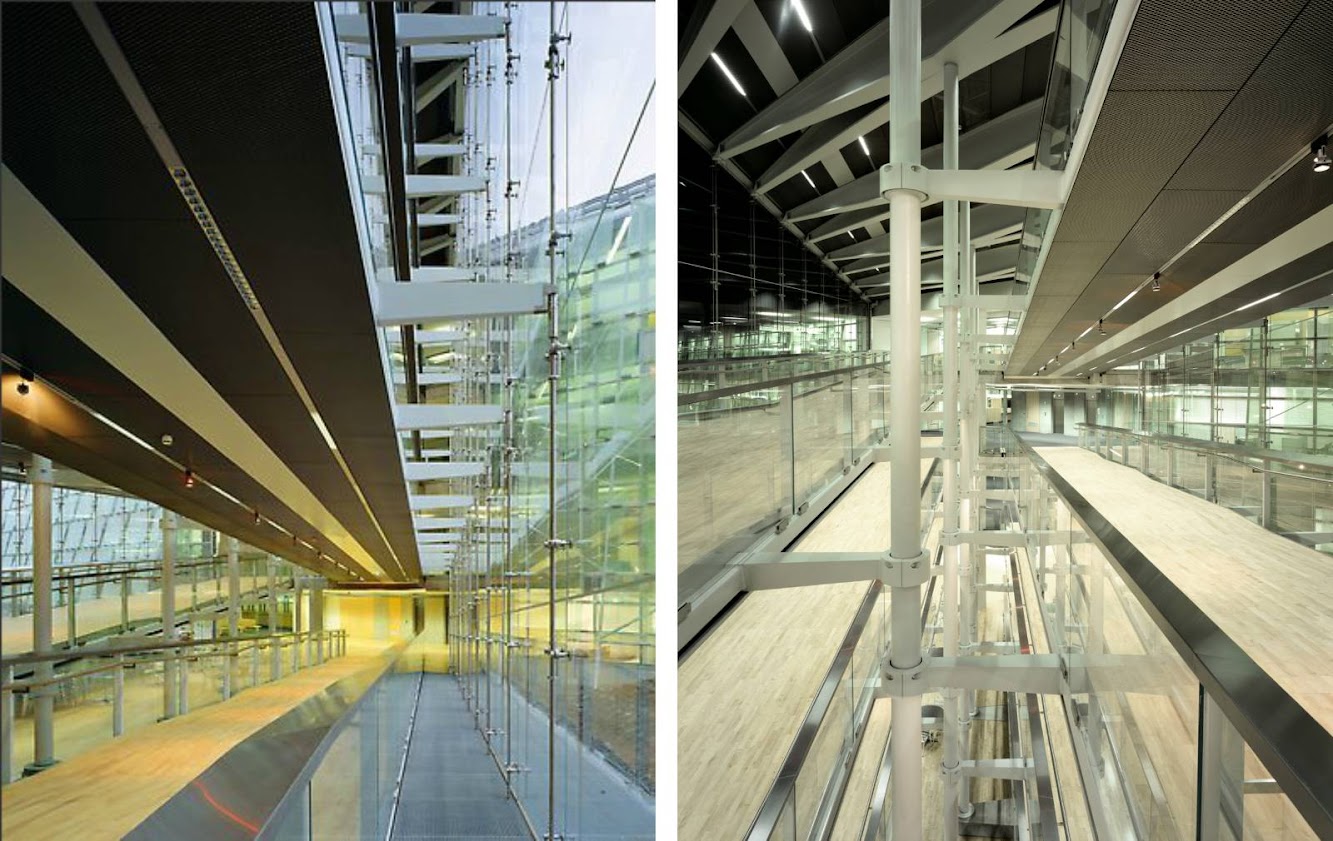

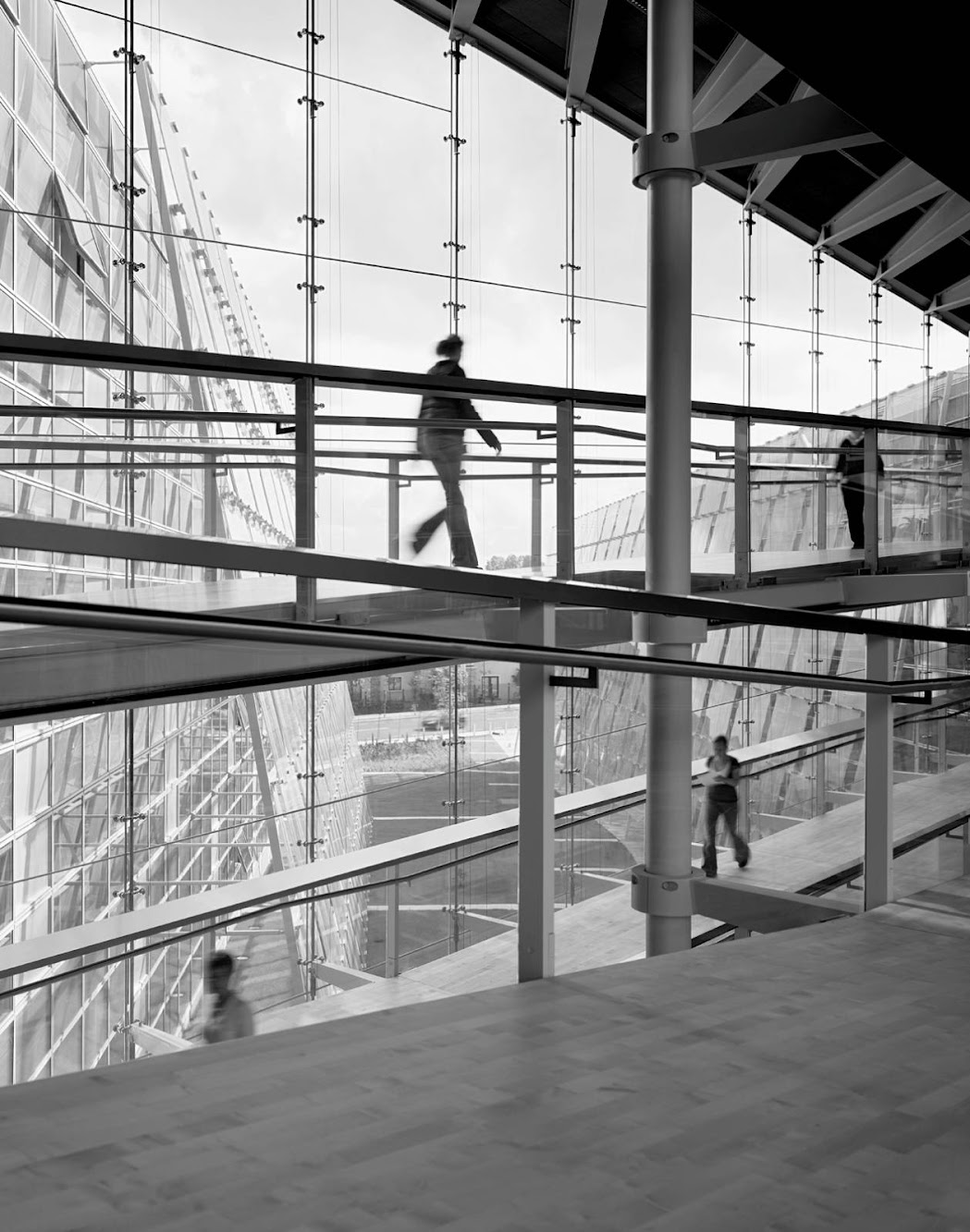

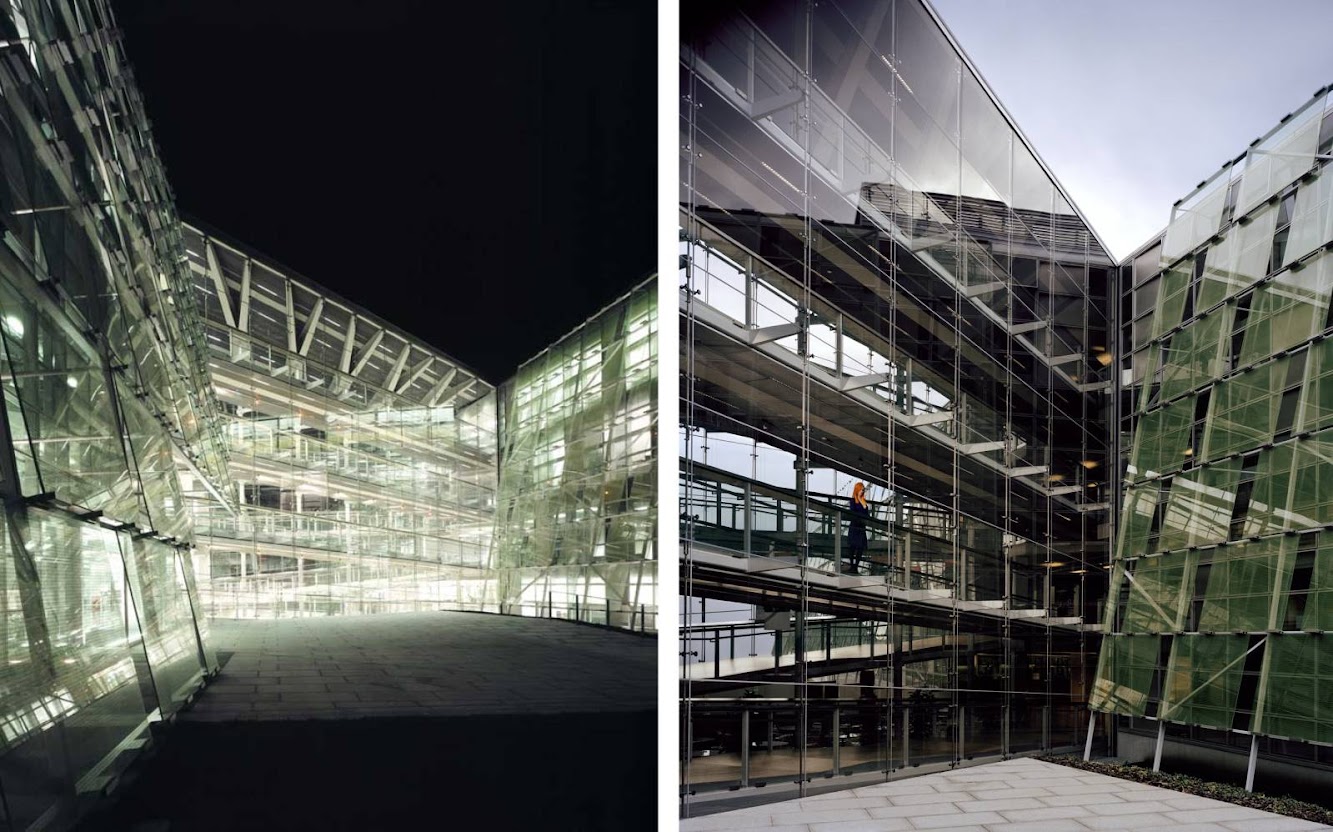

The ramps that connect the bars are a transitional space with loose environmental control that allow the park/amphitheatre to visually flow through, while internally the ramps serve as the primary circulation space in the building creating a clear navigation route.

Áras Chill Dara by Heneghan Peng architects

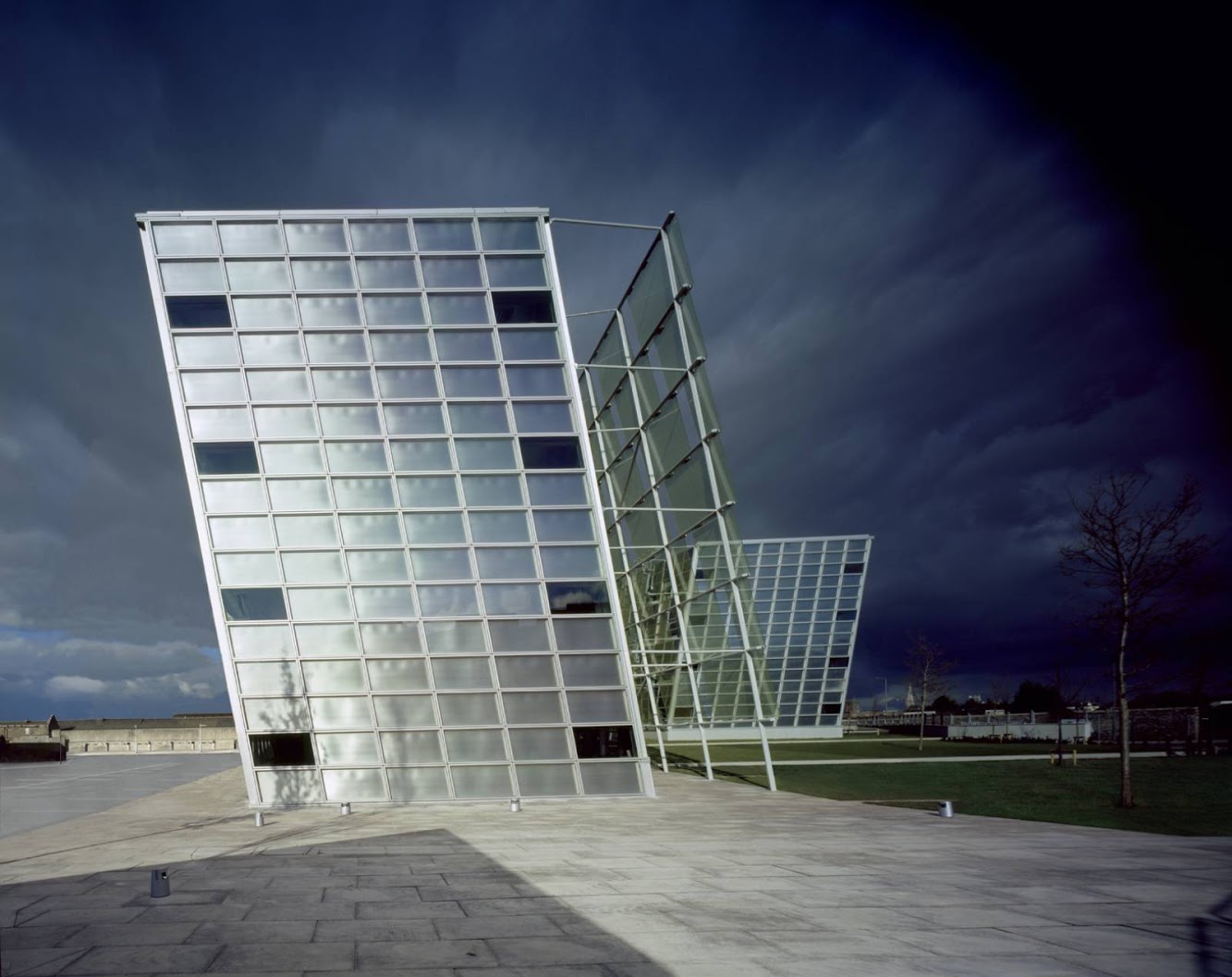

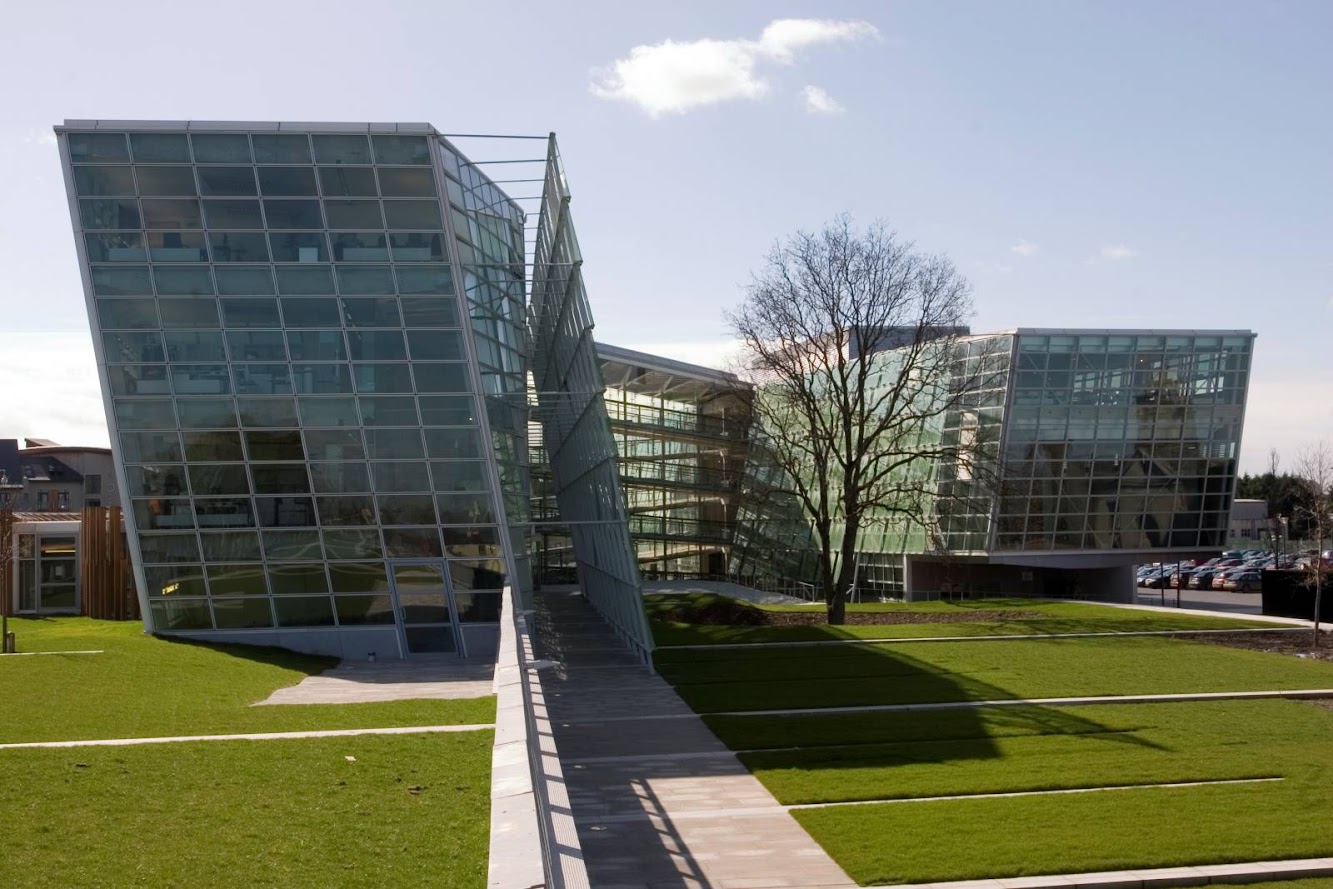

The building provides office accommodation Kildare County Council and also includes meeting rooms and a council chamber. It consists of a pair of tilted glazed four-storey blocks linked by glazed walkways.

Áras Chill Dara by Heneghan Peng architects

The blocks are only twelve metres wide to encourage natural ventilation and day-lighting. the building has an overall floor area of around 12500 m² and is orientated along a north-south axis to maximise east-west exposure.

Áras Chill Dara by Heneghan Peng architects

Maximum permanent occupancy of the building is approximately 400 with, in addition, an unspecified number of visitors on most days. Hours of operation are between 9:00 – 17:00 with a small amount of start up and shut down occupancy.

Áras Chill Dara by Heneghan Peng architects

Space heating is provided by high efficiency gas-fired boilers supplying a compensated radiator circuit. Local zone control is obtained using two-port valves.

Áras Chill Dara by Heneghan Peng architects

The boilers also supply domestic hot water, augmented by 60 m² of roof-based solar thermal collectors. the building is predominantly naturally ventilated with some local mechanical ventilation of toilets, food preparation areas and office equipment rooms.

Áras Chill Dara by Heneghan Peng architects

The council chamber, meeting rooms subject to intermittent high occupancy and It rooms, are provided with mechanical ventilation with comfort cooling supplied by an air-cooled chiller linked to low-level distribution. No spaces are fully air-conditioned.

Áras Chill Dara by Heneghan Peng architects

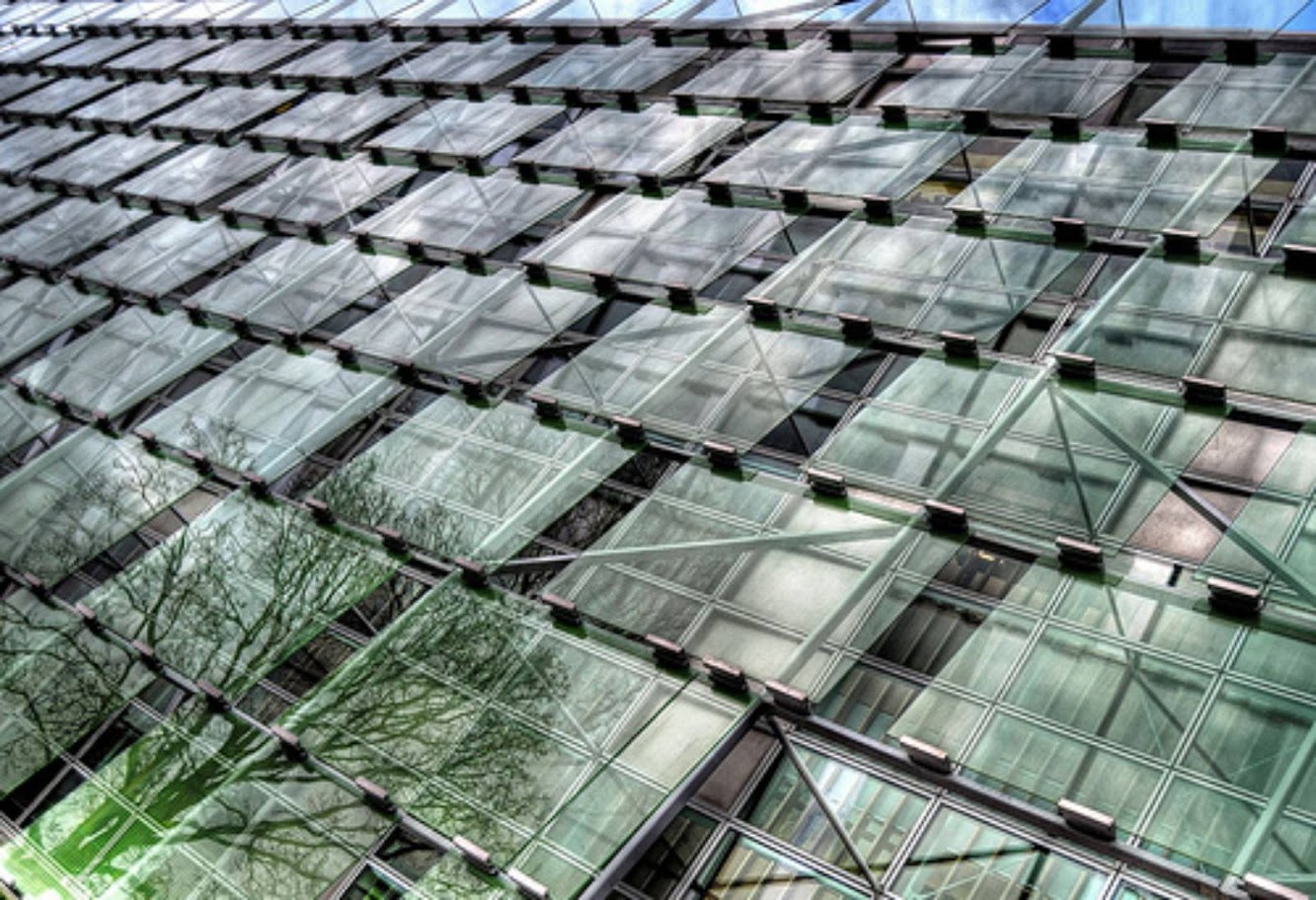

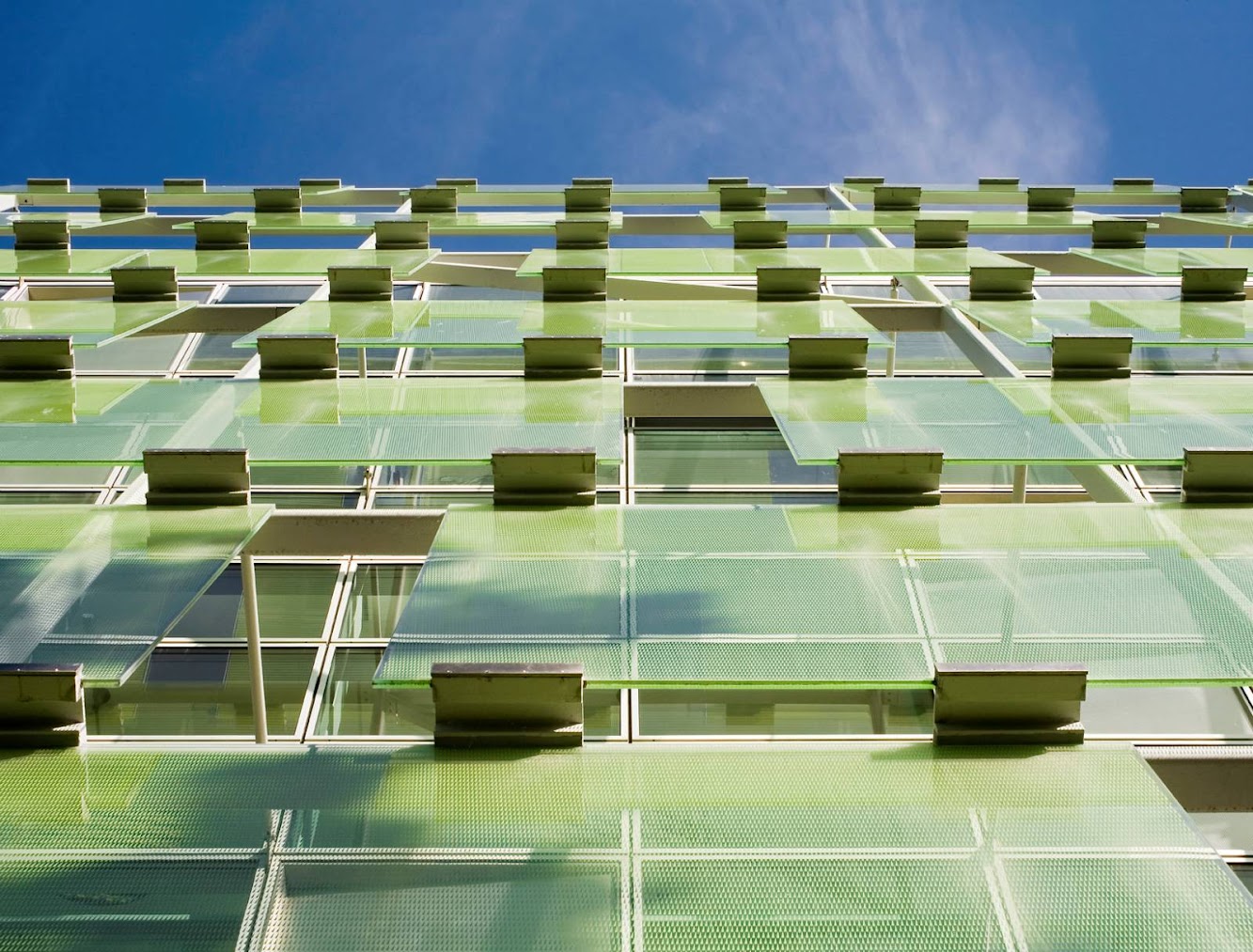

Control of heating and ventilation is provided by a building management system (BMS). Excessive solar gain is avoided by limiting the glazed areas on the east and west outer façades to 40% and 45% respectively, with controllable shading devices.

Áras Chill Dara by Heneghan Peng architects
Áras Chill Dara by Heneghan Peng architects
Áras Chill Dara by Heneghan Peng architects
Áras Chill Dara by Heneghan Peng architects
Áras Chill Dara by Heneghan Peng architects
Áras Chill Dara by Heneghan Peng architects
Áras Chill Dara by Heneghan Peng architects
Áras Chill Dara by Heneghan Peng architects

Location: Naas, Co. Kildare, Ireland Architect: Heneghan Peng architects + Arthur Gibney & Partners Structural|Civil: Michael Punch & Partners Building Services: Buro Happold QS: Boyd & Creed Facade Engineering: RFR IT, Security, Fire, Acoustics: Buro Happold Landscape: Heneghan Peng Architects, Mitchell + Associates Specialist Lighting: Bartenbach LichlaborSignage: Zero-GArea: 11,400 sqm Client: Kildare County Council Photographs: Courtesy of Heneghan Peng architects
